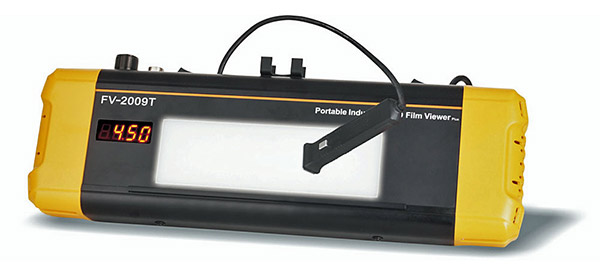

LCNDT Film Viewer FV-2009 T

FV-2009T is not simply merge view and densimeter together, but integrate two revolutionary units together, and complement each other. Not only saves you valuable desktop space, but also get rid of the disadvantage of traditional B&W densitometer, which aiming point is not convenient, then can’t measure the density of large size film. Use of luminous surface of viewer as the initial intensity light source for the densitometer, measure where as you touch with pen type probe, convenient and intuitive

Category:

Product description

Overview

  • Portable LED film viewer that combines with a densitometer
  • High luminance:≥120,000 cd/m²
  • Density:≥4.1H/D
  • Viewing screen: 8’X 2.5’ (200 X 60 mm)
  • High accuracy: ±0.2D
  • Program mode for customer calibration (patent technology)
  • Separated design easy for maintenance

Features

  • Max luminance: ≥120,000 cd/M2(376,000 Lux)
  • Uniformity: g≥0.95
  • Diffusion factor: σ’≥0.95
  • Viewer window: 200×60 mm
  • Surface temperature: rise ≤ 15oC after 12 hours continues maximum luminance
  • Power: 85-264VAC 47~63 Hz (Full range)
  • Dimension: 17.9×5.5×2.6″ or 455×140×65 mm (L*W*H)
  • Weight: 5.5 pounds or 2.5 kg

Includes

  • Foot pedal
  • Carrying bag
  • Light mask (150*60 mm)
  • Light mask (150*45 mm)
  • Instructions and 2 year manufacturer’s limited warranty
